MJ223 MJ224A MJ224B 목공 방사형 암은 가구 / 내각에 대해 봤습니다
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | Easwon |
| 인증: | ISO |
| Model Number: | MJ223 MJ224A MJ224B |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 set |
|---|---|
| 가격: | negotiated |
| Packaging Details: | carton |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 set per month |
|
상세 정보 |
|||
| Type: | Circular Saw | Use: | wood cutting Woodworking |
|---|---|---|---|
| Style: | Horizontal | Max. sawing thickness: | 110mm |
| Saw blade diameter: | 300-400mm | Motor power: | 3kw |
| Tilt angle of sawblade: | 0-90 | Application: | workshop |
| 하이 라이트: | MJ223 목공 방사형 암은 봤습니다,MJ224A 목공 방사형 암은 봤습니다,MJ224B 목공 방사형 암은 봤습니다 |
||
제품 설명

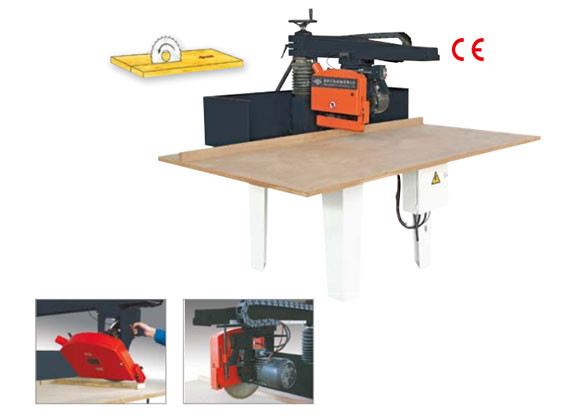

MJ223A, MJ224C, MJ224D woodworking Radial arm saw
Radial arm saw can be used for different angles of the sawing processing requirements, It is high precision, low noise, long-term stability of the performance, the whole line of beautiful, unique rail scraper. It can keep the rail cleaning, to ensure its standard and durability, Core design smart use.
Radial arm saw features:
1. Precision grinding makes the saw head slide smoothly and accurately.
2. Sawhead runs on 8 ball bearings, provides for effortless moving and comfortable operation.
3. Rigidly constructed arm is one piece casted, assuring deformation free after years of operation.
4. Sawblade is driven with a high performance 3kw copper motor, compact and very light in weight.
5. Arm swivels 45° right and left.
6. Sawblade may be set at any angle, and locked securely at the desired setting.
7. Fully guarded sawblade gives maximum safety for the operator.
Radial arm saw specification:
| Model | Unit | MJ223A | MJ224C | MJ224D |
| Max. sawing thickness | mm | 60 | 110 | 110 |
| Max. saw blade diameter | mm | Ø300 | Ø400 | Ø400 |
| Motor power | kw | 3 | 3 | 3 |
| Spindle speed | r/min | 2840 | 2840 | 2840 |
| Tilt angle of saw blade | 0-90° | 0-90° | 0-90° | |
| Moving distance along radial arm | mm | 620 | 1000 | 620 |
| Overall dimensions | mm | 1110x1000x1665 | 1100x1476x1710 | 1100x1000x1665 |
| Net weight | kg | 220 | 260 | 226 |
Package and shipping:
The radial arm saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
